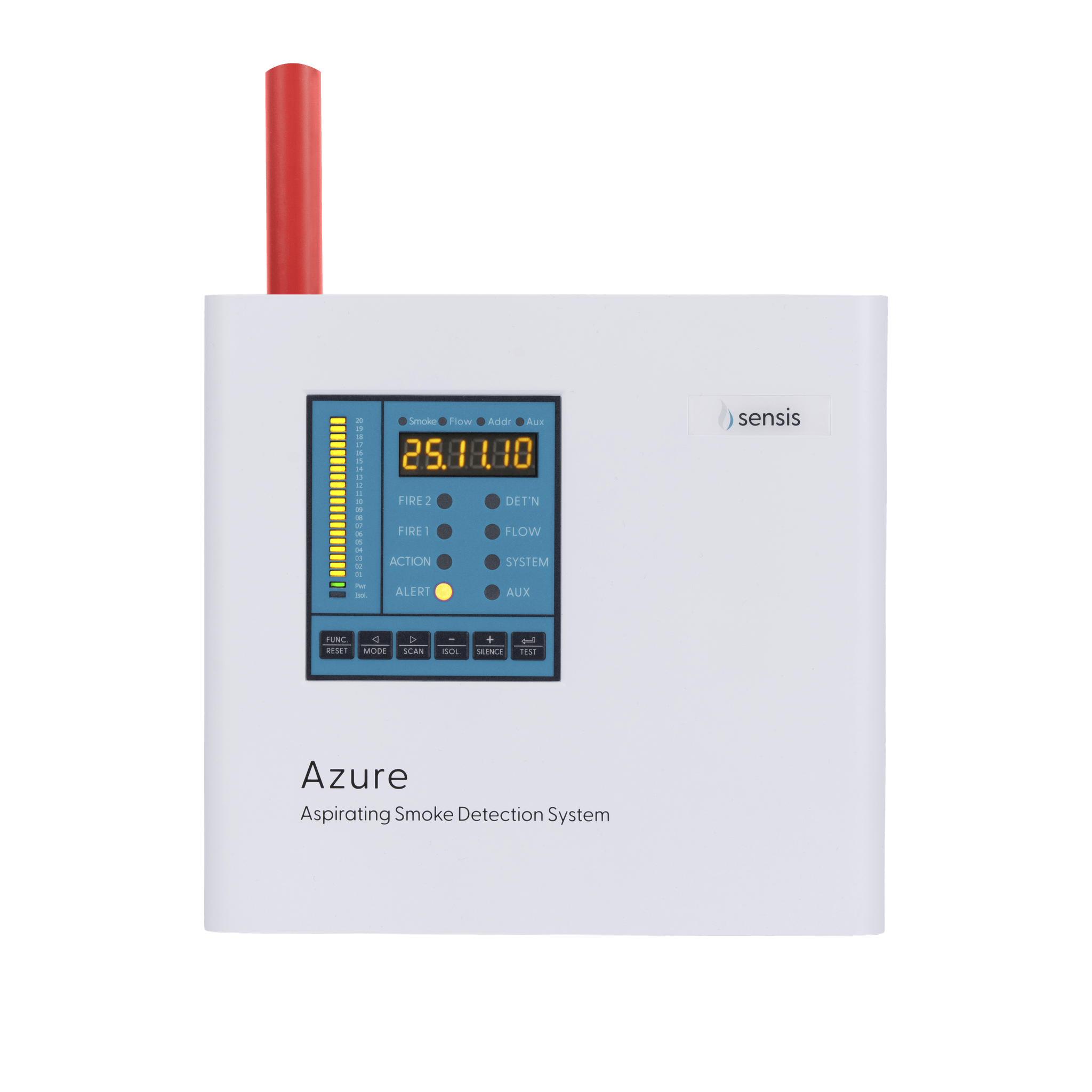

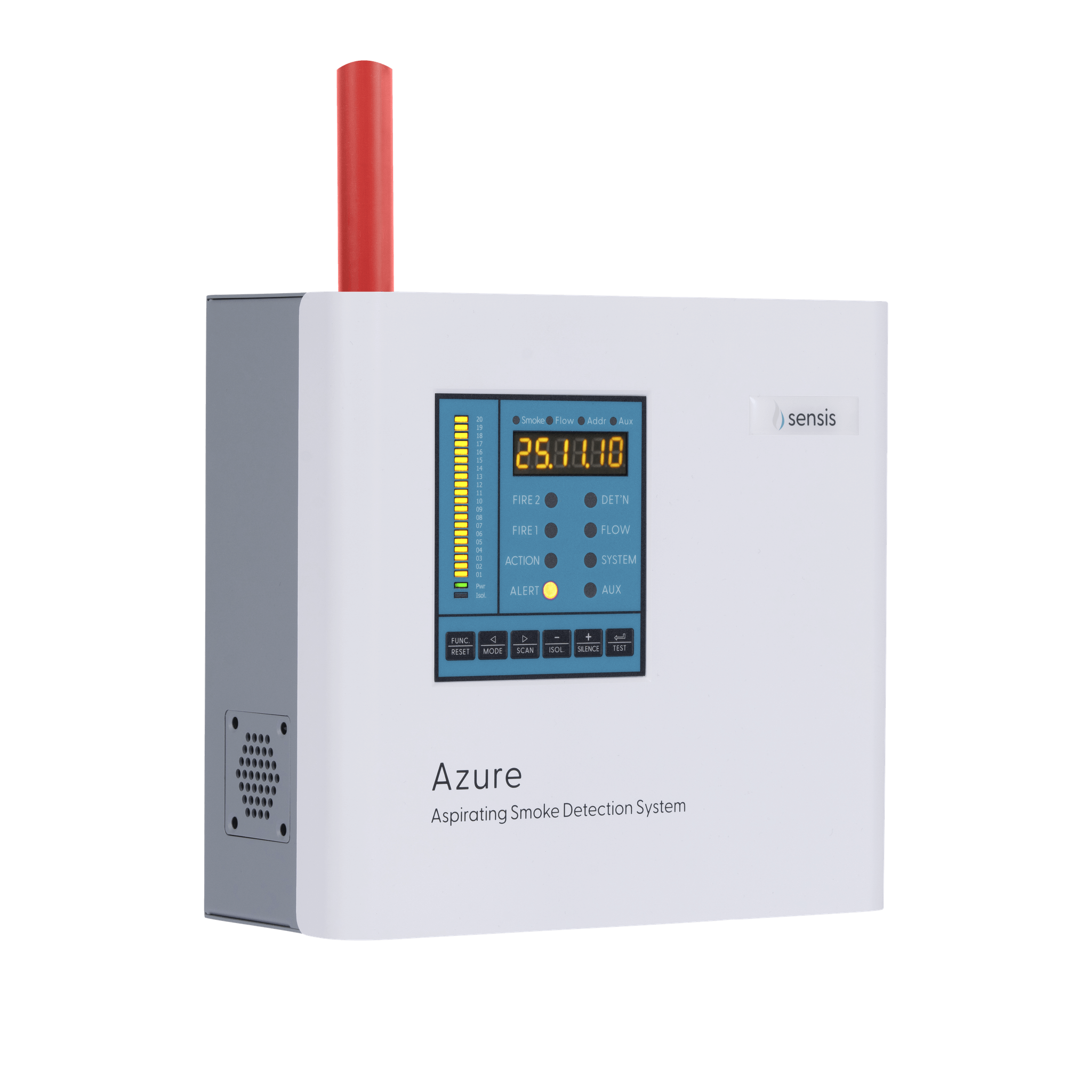

Sensis Azure 500s:
Industry leading, reliable aspirating smoke detection

Features & Benefits
Product Codes
Resources

Features & Benefits

Key Features

Very Early Warning Detection
Alarm sensitivity range from 0.005–20% obs/m, protecting areas up to 1,860 m². Ideal for small to large open spaces and challenging applications
High-Power Blue LED Source
Uses a 470 nm wavelength for heightened sensitivity to the smallest smoke particles
Smart Smoke Level (SSL) Technology
Continuously learns and adjusts to background conditions, operating 24/7 to reduce false alarms
Intuitive 3-in-1 display
Front panel with 20-segment bar graph, real-time smoke/flow readings, event log, plus dedicated Reset, Isolate, Silence, and Test functions without extra tools

Key Benefits

Rapid Fire Response
Detects smoke at the earliest possible stage, buying crucial time for safe evacuation and swift intervention
Superior Sensitivity
Blue LED technology ensures more reliable detection in environments where traditional IR systems may struggle
Fewer False Alarms
Continuous environmental learning adapts to dust and environmental changes, reducing nuisance activations
Easy Setup & Operation
Clear real-time display and configurable settings make installation and commissioning quicker and more straightforward for installers, without the need for additional tools

Product Codes

Sensis Azure 500s Products

Part No.	Description	Approval
4500-100	Sensis Azure 500s	EN
4020-100	Sensis Azure 2000s (1A)	EN
4021-100	Sensis Azure 2000s (4A) (Pipe scanning)	EN
4022-100	Sensis Azure 2000s (4A16) (Pipe scanning & zone relays)	EN

Accessories for use with Sensis Azure 500s

Part No.	Description	Compatibility
4800-000	Sensis Network Interface Module (NIM-1200)	All Sensis Detectors
4800-001	Sensis Network Control Panel (NCP-1215)	All Sensis Detectors
4800-002	Sensis In-Line Filter 25mm	All Sensis Detectors
4800-003	RS485 to USB Converter	All Sensis Detectors
4800-004	Sensis Azure Dual Stage Filter	Replacement filter for Azure 500s and 2000s models
4800-005	Sensis 2.4A Power Supply Unit	All Sensis Detectors. Additional battery box may be required for 2000s models

Resources

Datasheets

User Guides

Approvals

Dynamic Beam Phasing for Complex Geometries

The Fireray One incorporates Dynamic Beam Phasing, a technology that allows multiple beam detectors to operate in close proximity without causing signal interference. By sequencing the timing of each unit’s light pulses, the system ensures that a detector’s receiver will only recognise the signal from its corresponding emitter. This enables flexible installation in challenging layouts, such as parallel-facing beams in long corridors or irregular configurations in large, open areas, preventing the risk of false alarms caused by cross-talk between units.

Advanced Light Cancellation Technology™

To ensure reliable performance in environments with high ambient light, the Fireray One is equipped with Light Cancellation Technology™. This system actively measures ambient light levels, including direct sunlight and high-intensity artificial lighting, and filters them out from the infrared signal used for smoke detection. This prevents high-lux conditions from saturating the receiver and triggering nuisance alarms, ensuring the detector remains stable and effective in challenging settings like glass atria and modern architectural spaces.

Building Movement and Contamination Compensation

The Fireray One maintains operational integrity through two key automated features. Building Movement Tracking™ uses sophisticated algorithms to continuously monitor for and correct minor shifts in alignment caused by natural building settlement or thermal expansion. Simultaneously, Contamination Compensation adjusts the signal sensitivity to account for the gradual accumulation of dust and dirt on the optical surfaces. Together, these features ensure long-term reliability and significantly reduce the need for manual maintenance interventions.

What is the detection range of the Fireray One?

The Fireray One has a detection range of up to 120m with the Reflective Long Range Kit.

Can this detector be installed by just one person?

Yes. The entire installation and alignment process has been designed for a single technician, with no need for specialist tools or a second person at the reflector.

Can the Fireray One be used in buildings that are prone to movement?

Yes, the Building Movement Tracking™ feature compensates for natural shifts in alignment from building movement.

How does the Fireray One prevent false alarms?

The Fireray One uses Light Cancellation Technology™ to compensate for sunlight and artificial light sources, and Contamination Compensation to correct for dust build-up on the optics.

How does the system handle interference from other beams?

The Fireray One uses Dynamic Beam Phasing, which allows multiple detectors to be installed facing each other without causing interference or false alarms from signal cross-talk.

DATASHEET

Sensis Azure 500s Datasheet (EN)

Download

USER GUIDE

Sensis Azure 500s User Guide (EN)

Download
